Session Tracking in Mobile SDKs

Learn about the session tracking feature in the Android (Kotlin) and iOS (Swift) SDKs.

10 minute read

This guide covers the session tracking feature available in the RudderStack Android (Kotlin) and iOS (Swift) SDKs.

Overview

A session is a group of user interactions with your mobile application taking place within a given timeframe. For example, a single session can contain multiple screen views, events, social interactions, and ecommerce transactions.

Tracking user sessions helps you gather insights into the user journey and analyze their behaviour in detail.

The Android (Kotlin) and iOS (Swift) SDKs support two types of session tracking - Automatic and Manual.

Automatic session tracking

By default, RudderStack tracks user sessions automatically and attaches the session information to each event fired using the mobile SDKs.

When you fire an event from the SDK, RudderStack automatically attaches the sessionId field to the event’s context. It is then persisted by the SDK, so the same session ID is attached to all the events of the same session, even if the app is restarted.

Session start and end

An automatic session starts in the following scenarios:

After the previous user session has ended, or
No session data is present in the storage.

An automatic session ends when sessionTimeoutInMillis amount of time has elapsed after the app is backgrounded or closed. This timeout is measured from the last app background/closed time to the app foreground/launch time.

In Android (Kotlin) SDK 2.0.0 and later, the SDK does not start a session when it initializes. It checks the above rules the first time the user opens the app after the app process starts. If the stored session is a manual session, the SDK also starts a new automatic session.
Android can start your app in the background, for example to deliver a push notification. In that case, the SDK does not start a session. When includeBackgroundEventsInSession is true, a background event can start a session. See Background events and session lifetime.

Manage automatic session

As mentioned above, RudderStack enables automatic session tracking by default. To turn off this feature, set automaticSessionTracking in the sessionConfiguration parameter within Configuration to false while initializing the SDK, as shown:

kotlin

analytics = Analytics(configuration = Configuration(
    writeKey = BuildConfig.WRITE_KEY,
    application = application,
    dataPlaneUrl = BuildConfig.DATA_PLANE_URL,
    sessionConfiguration = SessionConfiguration(
        automaticSessionTracking = false,   // Disables automatic session tracking
    )
))

The corresponding Java snippet is shown below:

java

SessionConfiguration sessionConfiguration = new SessionConfigurationBuilder()
    .setAutomaticSessionTracking(false)   // Disables automatic session tracking
    .build();
Configuration configuration = new ConfigurationBuilder(application, writeKey, dataPlaneUrl)
    .setSessionConfiguration(sessionConfiguration)
    .build();
JavaAnalytics javaAnalytics = new JavaAnalytics(configuration);

swift

analytics = Analytics(configuration: Configuration(
    writeKey: "<WRITE_KEY>",
    dataPlaneUrl: "<DATA_PLANE_URL>",
    sessionConfiguration: SessionConfiguration(
        automaticSessionTracking: false,   // Set this to "false" to disable automatic session tracking
    )
))

The corresponding Objective-C snippet is shown below:

objectivec

RSSSessionConfigurationBuilder *sessionBuilder = [RSSSessionConfigurationBuilder new];
[sessionBuilder setAutomaticSessionTracking:NO];   // Set this to "NO" to disable automatic session tracking

RSSConfigurationBuilder *builder = [[RSSConfigurationBuilder alloc]
    initWithWriteKey:@"<WRITE_KEY>"
    dataPlaneUrl:@"<DATA_PLANE_URL>"];
[builder setSessionConfiguration:[sessionBuilder build]];

analytics = [[RSSAnalytics alloc] initWithConfiguration:[builder build]];

Configuration parameters

The SessionConfiguration class provides the following parameters to customize session management:

Parameter	Type	Description
`automaticSessionTracking`	Boolean / Bool	Enables automatic session tracking. Default value: `true`
`sessionTimeoutInMillis`	Long / UInt64	Sets the timeout duration for automatic session tracking in milliseconds. It is the time between the app closed or backgrounded to being foregrounded or relaunched again. The SDK times out a session and starts a new session after this time has elapsed. Default value: `300000` (5 minutes)
`includeBackgroundEventsInSession`	Boolean	Android (Kotlin) SDK 2.0.0 and later. This parameter decides whether background events belong to the automatic session. When `false`, your app’s background events do not carry the session and do not extend it — the SDK’s own lifecycle events are an exception. When `true`, background events carry the session and extend it. If no session is active or the session has timed out, a background event starts a new session. See Background events and session lifetime for details. Default value: `false`
`updateSessionOnBackgroundEvents`	Boolean / Bool	iOS (Swift) SDK, and Android (Kotlin) SDK 1.7.0 to 1.8.0. When `false`, background events do not extend the session lifetime. Sessions expire based on foreground user interactions only. Set to `true` to allow background events to extend the session lifetime (restores the behavior prior to Android (Kotlin) SDK 1.7.0 and iOS (Swift) SDK 1.3.0). Default value: `false`

Sample event

A sample event payload with the session information attached is shown below:

json

{
  "anonymousId": "19fb9683-3afe-48c5-84de-a22ac572b612",
  "channel": "mobile",
  "context": {
    "sessionId": 1740463597,
    "sessionStart": true,
    "traits": {
      "anonymousId": "19fb9683-3afe-48c5-84de-a22ac572b612"
    }
  },
  "event": "Application Opened",
  // Additional fields
  "messageId": "1b5f74c1-d324-42f2-a70b-95cbe4256614",
  "originalTimestamp": "2025-02-25T06:06:37.761Z",
  "properties": {
    "from_background": false,
    "version": "0.1.0"
  },
  "receivedAt": "2025-02-25T06:06:41.749Z",
  "rudderId": "e2c579a6-5820-459a-8100-0af86cf442a0",
  "sentAt": "2025-02-25T06:06:39.185Z",
  "type": "track"
}

The sessionStart field is present only in the first event of a new session that carries the session. This event can be any event, not only Application Opened.

Flow diagrams

The below flow diagrams explain the automatic session workflows when the user either launches or foregrounds the app.

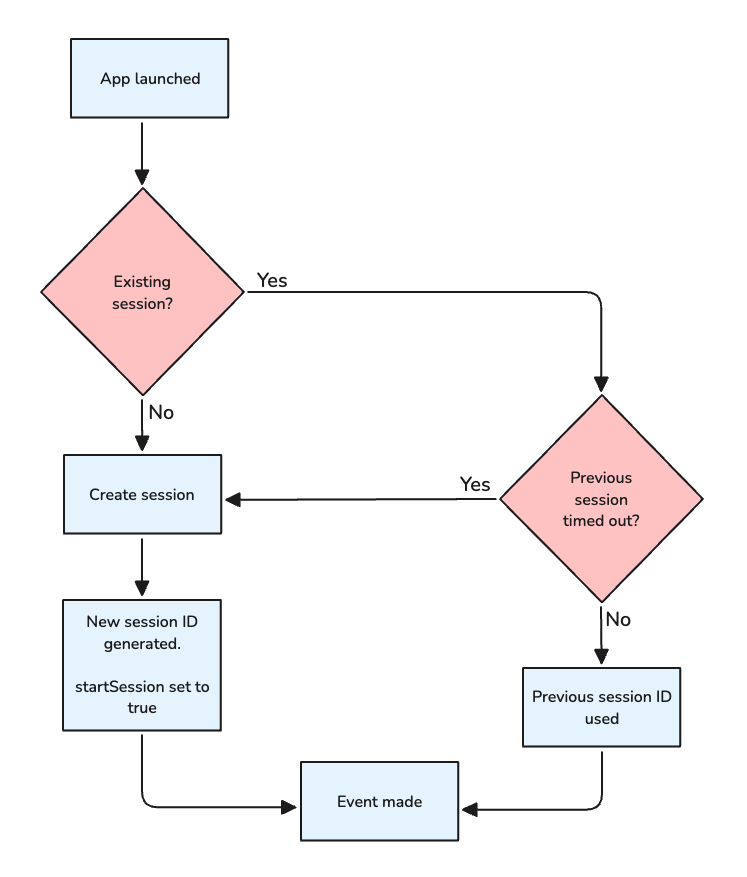

App launched

In the Android (Kotlin) SDK 2.0.0 and later, this flow runs when the user first opens the app. It does not run when the app process starts. If the stored session is a manual session, the SDK also starts a new automatic session.

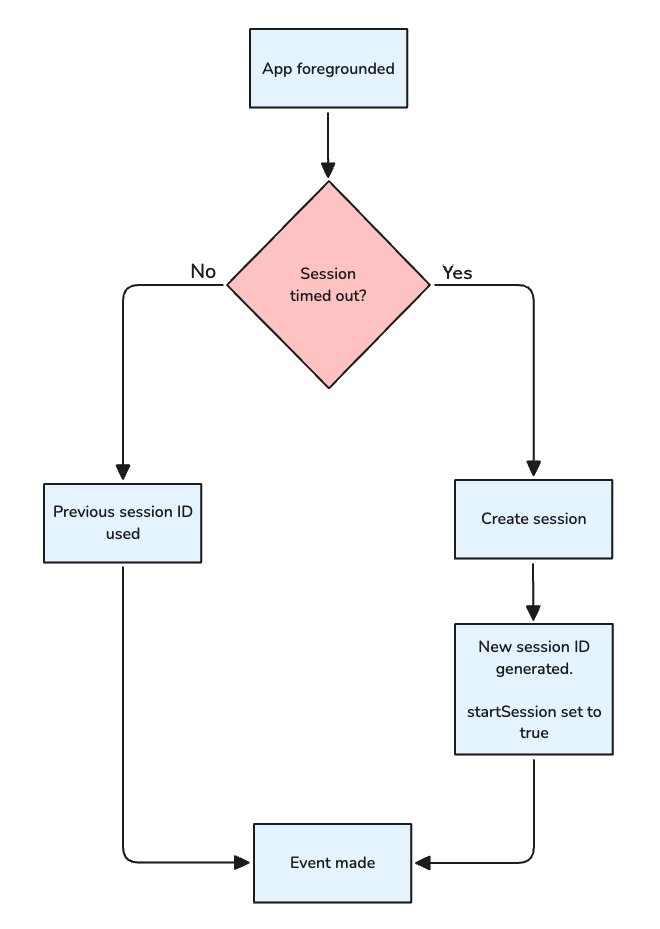

App foregrounded

Manual session tracking

A manual session is fully managed by the user, that is, the user is responsible for the session start and end and there is no concept of timeout. This feature also lets you provide a custom sessionId for the manual session.

Set up a manual session

To set up a manual session:

Configure automaticSessionTracking to false while initializing the SDK — this disables automatic session tracking.
Use the startSession API to start a new manual session.

kotlin

analytics = Analytics(configuration = Configuration(
    writeKey = BuildConfig.WRITE_KEY,
    application = application,
    dataPlaneUrl = BuildConfig.DATA_PLANE_URL,
    sessionConfiguration = SessionConfiguration(
        automaticSessionTracking = false,    // Disables automatic session tracking
    ),
))

The corresponding Java snippet is shown below:

java

SessionConfiguration sessionConfiguration = new SessionConfigurationBuilder()
        .setAutomaticSessionTracking(false)    // Disables automatic session tracking
        .build();

Configuration configuration = new ConfigurationBuilder(application, writeKey, dataPlaneUrl)
        .setSessionConfiguration(sessionConfiguration)
        .build();

JavaAnalytics javaAnalytics = new JavaAnalytics(configuration);

swift

let config = Configuration(
    writeKey: writeKey,
    dataPlaneUrl: dataPlaneUrl,
    sessionConfiguration: SessionConfiguration(
        automaticSessionTracking: false,    // Disables automatic session tracking
    ),
)
self.analytics = Analytics(configuration: config)

The corresponding Objective-C snippet is shown below:

objectivec

RSSConfigurationBuilder *builder = [[RSSConfigurationBuilder alloc] initWithWriteKey:writeKey dataPlaneUrl:dataPlaneUrl];

RSSSessionConfigurationBuilder *sessionBuilder = [RSSSessionConfigurationBuilder new];
[sessionBuilder setAutomaticSessionTracking:NO];
[builder setSessionConfiguration: [sessionBuilder build]];

self.analytics = [[RSSAnalytics alloc] initWithConfiguration:[builder build]];

Supported APIs

RudderStack provides the following APIs for manual session tracking:

API	Description
`sessionStart`	Used to start a new manual session. It takes `sessionId` as an optional parameter. If you do not provide any `sessionId`, then the current timestamp is used as the `sessionId` instead.
`endSession`	Must be called to end a session manually as there is no concept of automatic session end due to timeout.

Persistence scope

The persistence scope of manual session tracking depends on the status of automatic session tracking:

If automatic session tracking is enabled and you call the startSessionAPI, then RudderStack disables automatic session tracking. Once you restart the app, the SDK resumes automatic session tracking if it is still enabled.
If automatic session tracking is enabled, calling the endSession API causes the active session to end. The automatic session tracking resumes once the app is relaunched, provided automatic session tracking is still enabled.
If automatic session tracking is disabled and you call the startSession() API, the manual session is active until you end it by calling the endSession API.

Sample snippets

kotlin

// Starts a new manual session and automatically assigns a session ID.
rudderClient.startSession()

// Passes a custom session ID while creating a new session.
rudderClient.startSession(sessionId)

// Ends the user session and clears the session ID.
rudderClient.endSession()

The corresponding Java snippet is shown below:

java

// Starts a new manual session and automatically assigns a session ID.
rudderClient.startSession();

// Passes a custom session ID while creating a new session.
rudderClient.startSession(sessionId);

// Ends the user session and clears the session ID.
rudderClient.endSession();

swift

// Starts a new manual session and automatically assigns a session ID.
analytics.startSession()

// Passes a custom session ID while creating a new session.
analytics.startSession(sessionId)

// Ends the user session and clears the session ID.
analytics.endSession()

The corresponding Objective-C snippet is shown below:

objectivec

// Starts a new manual session and automatically assigns a session ID.
[analytics startSession];

// Passes a custom session ID while creating a new session.
[analytics startSession:sessionId];

// Ends the user session and clears the session ID.
[analytics endSession];

Background events and session lifetime

In the Android (Kotlin) SDK, a background event is an event that your app sends while it has no visible screen. A push notification handler, a background job, or a foreground service can send background events. Events sent from Application.onCreate before the first screen opens are also background events.

The Android (Kotlin) and iOS (Swift) SDKs handle background events differently:

From Android (Kotlin) SDK 2.0.0, the includeBackgroundEventsInSession parameter decides whether background events belong to the automatic session:

Value	Behavior
`false` (default)	Your app’s background events do not carry `sessionId` or `sessionStart`, and they do not extend the session. The SDK’s own lifecycle events are an exception — `Application Installed`, `Application Updated`, and `Application Opened` carry the session and extend it, because the SDK sends them in the foreground. `Application Backgrounded` carries the session but does not extend it.
`true`	Background events carry the session and extend it. If no session is active, or the session has timed out, a background event starts a new session. The SDK does not resume a session that has timed out.

Set includeBackgroundEventsInSession to true if your app tracks user activity from the background. For example, a music player or a navigation app can track user activity from a foreground service.

A manual session applies to all events, in the foreground and in the background.

kotlin

// Default — background events do not belong to the session
val sessionConfiguration = SessionConfiguration(
    sessionTimeoutInMillis = 300_000L
)

// Opt in — background events belong to the session
val sessionConfiguration = SessionConfiguration(
    sessionTimeoutInMillis = 300_000L,
    includeBackgroundEventsInSession = true
)

The corresponding Java snippet is shown below:

java

// Default — background events do not belong to the session
SessionConfiguration sessionConfiguration = new SessionConfigurationBuilder()
    .setSessionTimeoutInMillis(300000L)
    .build();

// Opt in — background events belong to the session
SessionConfiguration sessionConfiguration = new SessionConfigurationBuilder()
    .setSessionTimeoutInMillis(300000L)
    .setIncludeBackgroundEventsInSession(true)
    .build();

In Android (Kotlin) SDK 1.7.0 to 1.8.0, this parameter is named updateSessionOnBackgroundEvents. In those versions, background events carry the session even when the parameter is false. See Breaking Changes in Android (Kotlin) SDK 2.0.0 before you upgrade.

From iOS (Swift) SDK 1.3.0, background events no longer extend the session lifetime by default. If your use case requires background events to extend session lifetime — for example, personalized push notification flows — set updateSessionOnBackgroundEvents to true in SessionConfiguration.

swift

// Default — background events do not extend session lifetime
let sessionConfiguration = SessionConfiguration(
    sessionTimeoutInMillis: 300_000
)

// Opt in — background events extend the session lifetime
let sessionConfiguration = SessionConfiguration(
    sessionTimeoutInMillis: 300_000,
    updateSessionOnBackgroundEvents: true
)

The corresponding Objective-C snippet is shown below:

objectivec

// Default — background events do not extend session lifetime
RSSSessionConfiguration *config = [[[RSSSessionConfigurationBuilder alloc] init] build];

// Opt in — background events extend the session lifetime
RSSSessionConfiguration *config = [[[[RSSSessionConfigurationBuilder alloc] init]
    setUpdateSessionOnBackgroundEvents:YES]
    build];

Get the session ID

You can use the sessionId API to retrieve the current session ID for the manual or automatic session, as shown:

kotlin

val sessionId = analytics.sessionId

The corresponding Java snippet is shown below:

java

Long sessionId = analytics.getSessionId();

swift

var sessionId = analytics.sessionId

The corresponding Objective-C snippet is shown below:

objectivec

NSNumber *sessionId = analytics.sessionId;

In the Android (Kotlin) SDK 2.0.0 and later, sessionId returns the session ID that an event sent at that moment would carry. It returns null when no session is active, and also in the following cases:
The app is in the background and includeBackgroundEventsInSession is false.
The app is in the background, includeBackgroundEventsInSession is true, and the session has timed out.
A manual session always returns its session ID.

Effect of `reset` API on session tracking

Calling the reset API causes the session to refresh irrespective of whether it is automatic or manual — this means RudderStack restarts the session and generates a new session ID.

Note that:

The identify API calls reset internally when a previously identified user’s userId changes, for example, User A > User B. In this case, the session is refreshed along with all the other user data.
Calling identify on an anonymous user (no previous userId) does not trigger a reset — the existing session continues uninterrupted.

See the reset API documentation for more information on the implicit reset behavior and how to selectively preserve specific data during a user switch.
